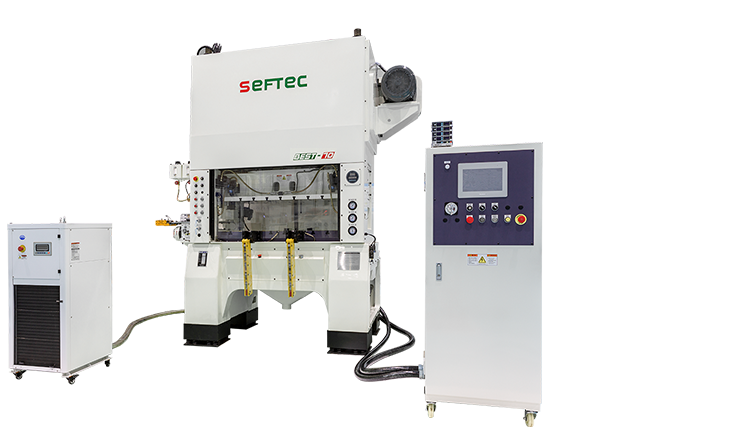

Best-70
With F80 feeder
Applications:
● Semiconductor discrete device
● IC lead frame
● Motor core
● Precision components
● ......
| Model | Unit | Best-70 | ||||
| Presscapacity | KN | 700 | ||||
| Strokelength | mm | 20 | 25 | 30 | 35 | 40 |
| Stroke perminute | spm | 100-700 | 100-650 | 100-600 | 100-550 | 100-500 |
| Dieheight | mm | 220-300 | ||||
| Slideadjustment | mm | 80 | ||||
| Slidelower area | mm | 1280x500 | ||||
| Bolster | mm | 1350x700 | ||||
| Thicknessof bolster | mm | 140 | ||||
| Openingsize of bolster | mm | 1200x1000x130 | ||||
| Bedopening | mm | 1050x140 | ||||
| Motor | kw | 22x4p | ||||
| Max.weight of upper die | kg | MAX500 | ||||
| Machine weight | kg | 18700 | ||||
Dimensions:
Table Size:
Applications:
● Semiconductor discrete device
● IC lead frame
● Motor core
● Precision components
● ......
